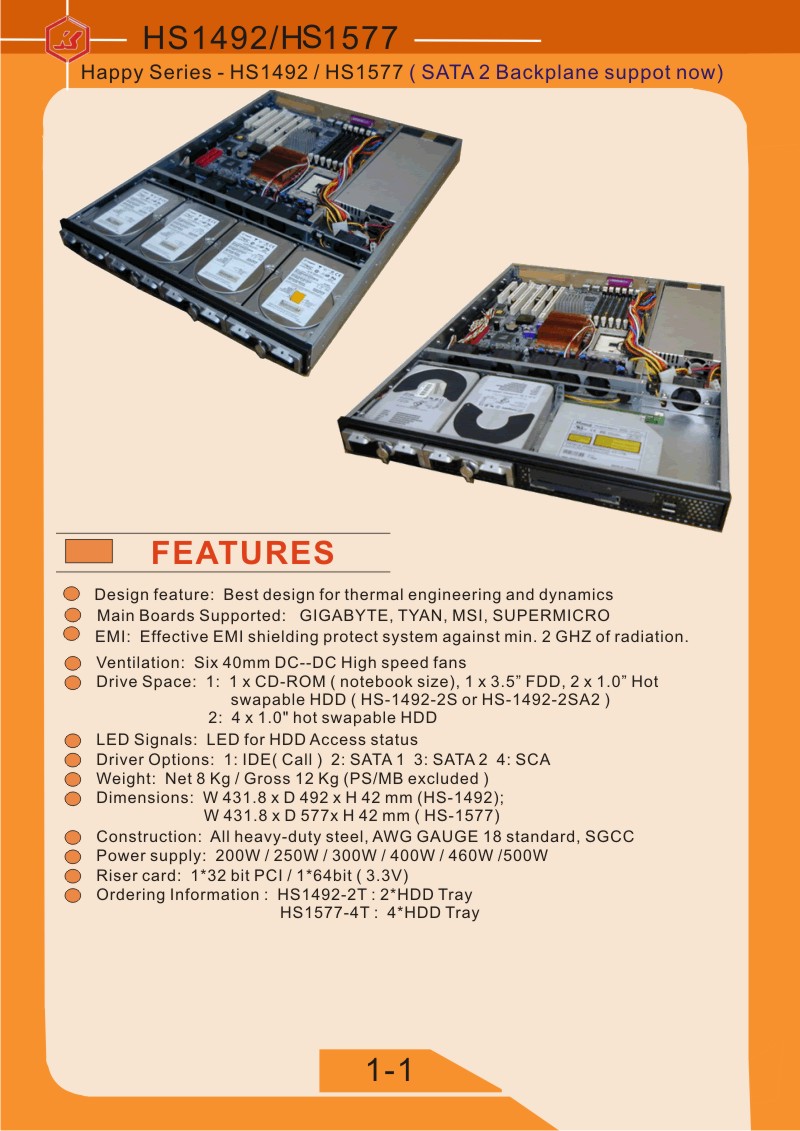

Happy Series - HS1492 / HS1577

19 1U Low profile Storage RackServer With 4x hot-Swapable HDD Trays

Design feature:

Best design for thermal engineering and dynamics

Main Boards Supported:

EMI:

Effective EMI shielding protect system against min. 2 GHZ of radiation.

Ventilation:

Six 40mm DC--DC High speed fans

Drive Space:

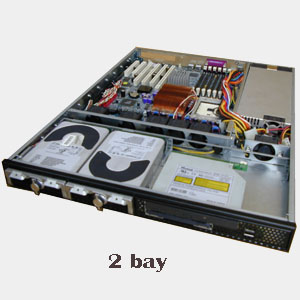

1. 1 x CD-ROM ( notebook size), 1 x 3.5"FDD, 2 x 1.0" Hot swapable HDD ( HS-1492-2S or HS-1492-2SA2 )

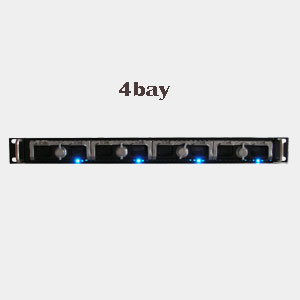

2. 4 x 1.0" hot swapable HDD

LED Signals:

LED for HDD Access status

Driver Options:

1. IDE( Call )
2. SATA 1
3. SATA 2
4. SCA

Weight:

Net 8 Kg / Gross 12 Kg (PS/MB excluded )

Dimensions:

W 431.8 x D 492 x H 42 mm (HS-1492)
W 431.8 x D 577x H 42 mm ( HS-1577)

Optional accessories:

TS-22-3S (Screws : 10 ø 32T)

Construction:

All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Power supply:

250w / 300W / 350W / 460W/ 500W

Riser card:

1*32 bit PCI / 1*64bit ( 3.3V)

Ordering Information:

• HS1492-2SA-1:SuperMicro M/B, 2*S-ATA
• HS1492-2SA2-1:SuperMicro M/B, 2*S-ATA2
• HS1492-4SA-1: SuperMicro M/B, 4*S-ATA
• HS1492-4SA2-1: SuperMicro M/B, 4*S-ATA2
• HS1492-2SA-2: Tyan M/B, 2*S-ATA
• HS1492-2SA-2: Tyan M/B, 2*S-ATA2
• HS1492-4SA-2: Tyan M/B, 4*S-ATA
• HS1492-4SA2-2: Tyan M/B, 4*S-ATA2
• HS1577-4S-1: SuperMicro M/B, 4*SCA ,
• HS1577-4SA-1:SuperMicro M/B, 4*S-ATA
• HS1577-4SA2-1:SuperMicro M/B, 4*S-ATA2
• HS1577-4S-2: Tyan M/B, 4*SCA
• HS1577-4SA-2: Tyan M/B, 4*S-ATA
• HS1577-4SA2-2: Tyan M/B, 4*S-ATA2
