IPC2440MA
|
19" 2U low profile Micro ATX FA Chassis |

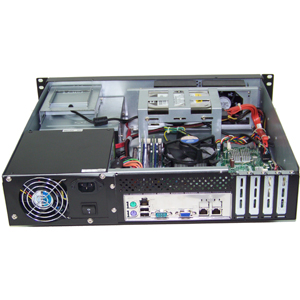

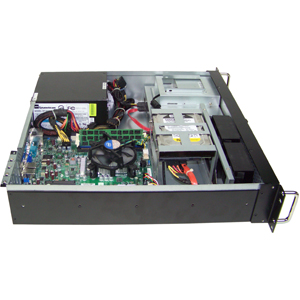

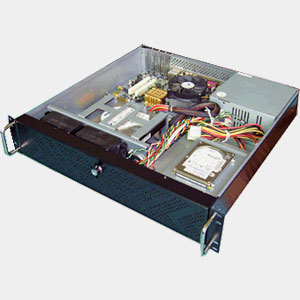

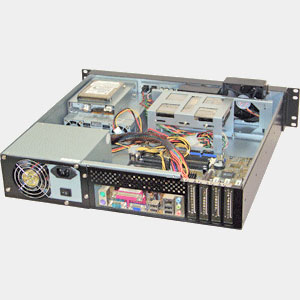

put in clip photo for enlarged image
|
|
Design feature:
|
- Best design for thermal engineering and dynamics
- Lockable Front door for High Security protection
- Quick and easier replacement hot swapable Fan module.
|
Construction: |
- All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SGCC
- PS2 power supply supported
|
EMI: |
Effective EMI shielding protect system against min. 3
GHZ of radiation. |
Ventilation: |
2 x 80mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2
Ball) in Front ( see picture ), Hot swappable fan video demo |
Drive Space: |
1 x 5.25" driver spaces,1 x 3.5" Floppy , 1 x 2.5 " HDD driver spaces, + 2 x 3.5" HDD |
LED Signals: |
HDD , Lan , Power picture |
Main board Supported: |
Micro ATX main board 9.6" x 9.6" |
Weight: |
Net 6 Kg / Gross 7.8 Kg (PS/MB excluded ) |
Dimensions: |
- W432 x D 440 x H 87 mm ( Chassis )
- W 570 x D 555 x H190 mm ( Carton Packing ) , i.e.2.13 cubic feet
|
Optional accessories: |
- Telescope slide TS-22-3S (Screws : M4)& Mounting BracketMBR-3S ( standard kits, flat Mounting kits)
- AT switch S-AT-429 picture
|
Power supply: |
300W/ 460W / 500W PS2 size PS |
Chassis Ordering Information: |
- IPC2440MA
- TS-23S
- Power supply
|
Download |

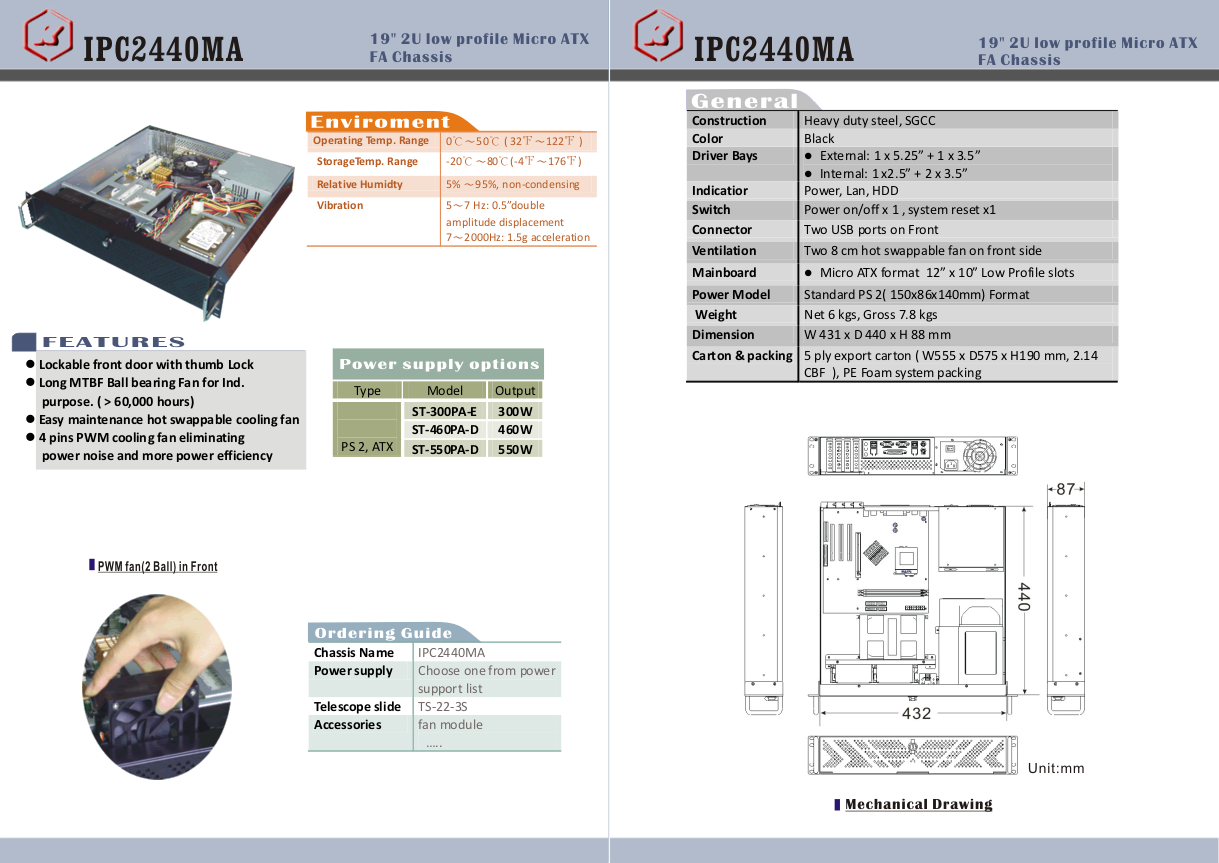

- Datasheet[Format:PNG]

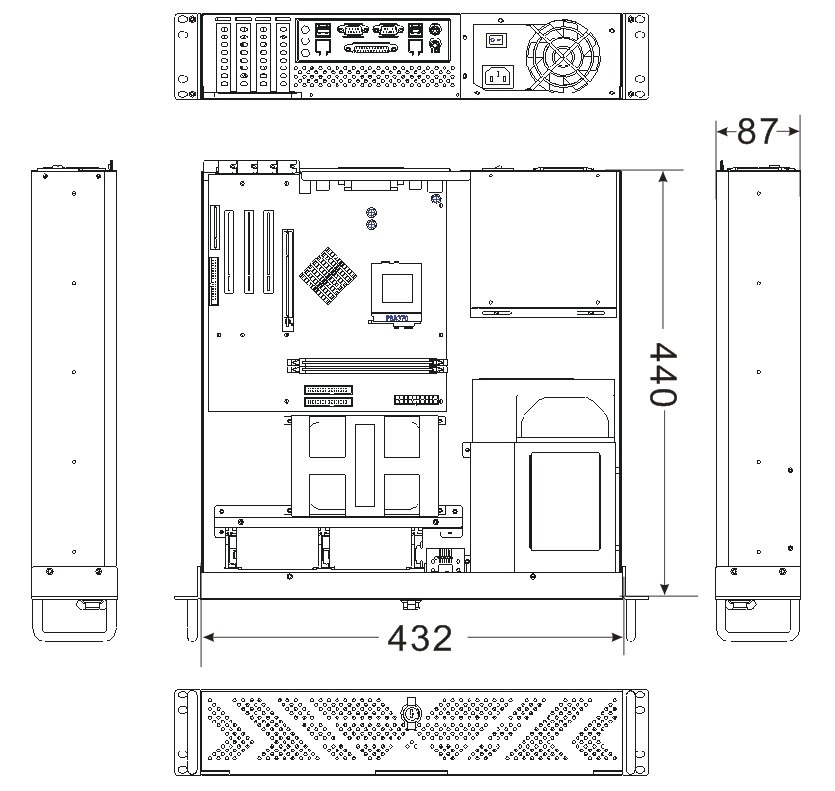

- Mechanic Drawing[Format:JPG]
- IPC2440MA Manual (V1.02)[Format:PDF]
|
|
|
