Accessories

CPU Cooler
155A915Z
  • Intel LGA 1150 / 1151 / 1155 / 1156
  • 1 U cooler
  • CPU card Mounting Friendly
JYCC501A-2
  • Intel P4 LGA 775





JACL 511C
  • Intel P4 LGA 775




Telescope slide
TS-22-3S

(22 inch 3 section telescope slide)

Datasheet
Bracket mounting information
Telescope slide installation Video

TS-22-2S

(22 inch 2 section telescope slide)

HDD & HDD Backplane
IB-2226StS
  • 2x 2.5" SATA HDD or SSD in 1x 3.5" bay
    Easy Swap® - tool less HDD or SSD installation
    and exchange
  • Hard disk capacity not limited
  • Support HDD height up to 9.5 mm
  • SATA host interface 3.0 Gbit/s
  • Low noise, fanless design
  • LED for power and HDD access
  • Supports Hot Swap
  • Supports all operating systems
ST-1040SS Backplane for 2.5" SAS / SATA HDD
  1. Compact & embedded storage applications for future needs
  2. Removable mobile backplane
  3. Cableless HDD connection design
  4. Optimal cooling due to 2 X 4cm fan
  5. Security triangle keylock tray for removable in/out
  6. RAID support
1040ss
ST-1041SAS Backplane for 2.5" SAS / SATA HDD
  1. Interface: SATA-I, SATA-2.0, SAS
  2. Form factor: 1x 5.25" for 4x 2.5" HDD
  3. for HDDs up to 14.5mm height
  4. Material: Aluminium with metal trays
  5. Power connector: 1x 15 pin SATA
  6. 2x 4cm fans
  7. LED display for power and access for each HDD
  8. Mechanical keylock for each bay
ST1041SAS
ST-116TL trayless

SATA / SAS Trayless HDD Box

M14T (EOL)
  • 4x 2.5" Hot-swap SAS / SATA
    Hard Disk Drive Trays
  • Overheat LED
  • Fan Failure LED
  • Drive Activity LED
  • 1x 5.25" Drive Bay Enclosure
  • 4cm Cooling Fan Subsystem
ST-2335TL trayless

3x 1" S-ATA / SAS Hot swap HDD backplane ( 2 x 5.25 Bay for 3 HDD )

2335
ST-3435TLtrayless

4x 1" S-ATA / SCA Hot swap HDD backplane, ( 3 x 5.25 Bay for 4 HDD )

3435
CSE-M35S / CSE-M35T / CSE-M35TQ

5x 1" Host Receptacle Connector,S-ATA / SAS / SCA hot-swap hard drives

2.5" SATA/IDE SSD
  • Storage Capacities:8 GB to 192 GB
  • Dimensions(mm):L 100 x W 69.85 x H 9.5
  • Input Voltage:5V ± 5%
  • Weight:66g ± 5g
  • Connector:SATA 7+15 pins combo connector

DVD ROM Datasheet

24 X Slim DVD

52X SATA DVD / DVD recorder

CDFD-Combo-V4

1 x Slim CD ROM + 1 x 3.5 inch Floppy , Metal Combo Frame, Dimension: 156.5 x148.1x42.5 ( DxWxH)



CDFD-V2-s

Multi-card-reader

1 x Slim CD ROM + 1 x 3.5 inch Floppy , Metal Combo Frame

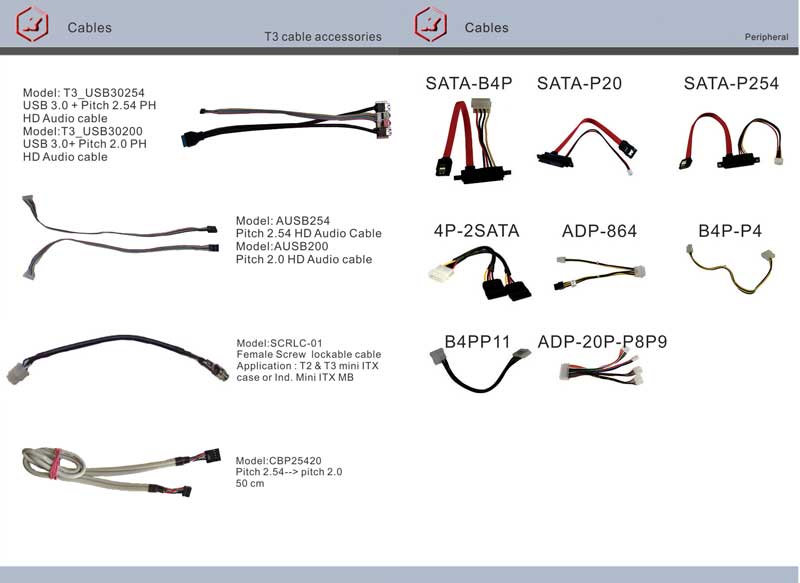

Cables Datasheet

4P-2SATA

4P-2SATA

4P-EX-1

ADP-20P-P8P9

ADP-20P-P8P9

ADP-864-1

ADP-864-1

ADPCB-20ex

ADPP4-1

B4P-S4P-1

molex-79576-3003

molex-79576-3003

CBL-0097L-02

Daughter cardnew
Mini PCIe

MEC-Lan-M002: Mini PCIe 2 port GbE card

MEC-DIS-M002: Mini PCI-e DVI / VGA output graphic board

IGCME-1300: Mini PCI-e VGA output graphic board

WIFI-RT3593-DB: Half-size PCIe Mini card

WMPCIE-V02-R10: Half-size PCIe Mini card

GPS Module:

3G

4G

CN030: SIM socket for 3 G Modem

MLM002
LCD Convertor Board

DP-DP

DP-DP

DP-DVI

DP-HDMI

DP-LVDs

DP-VGA

LVDs-DVI

LVDs-VGA02

LVDs-VGA02

LVDs-VGA-R10


Fan Speed control panel
FSC-01

3.5" floppy size panel, RAL-7045 Telegray

with High-Low fan speed control switch

FSC-02

3.5" floppy size panel, RAL-7045 Telegray

with High-Low fan speed control switch and 2* USB ports

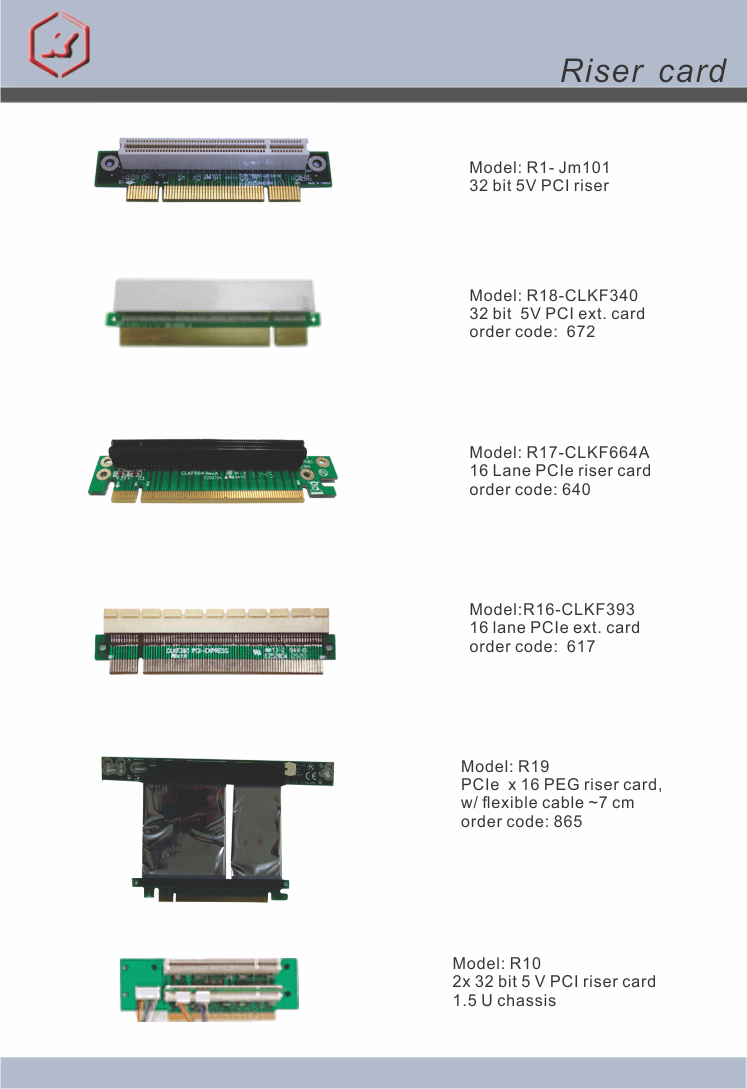

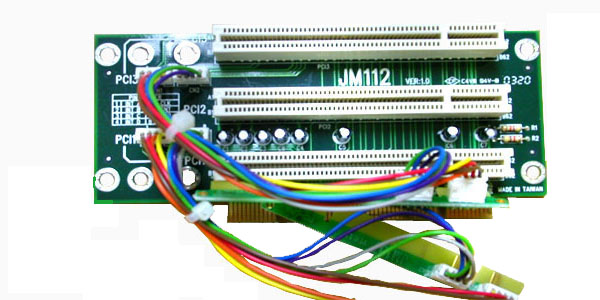

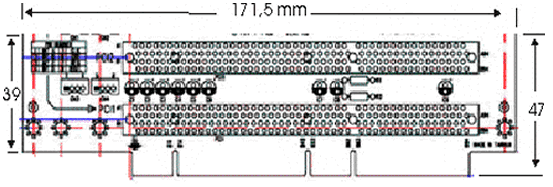

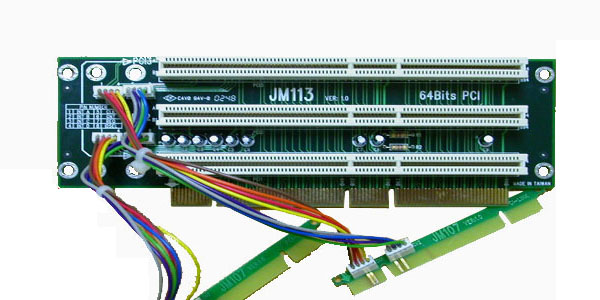

Riser Card for 1 U and 2 U 19" Chassis Datasheet

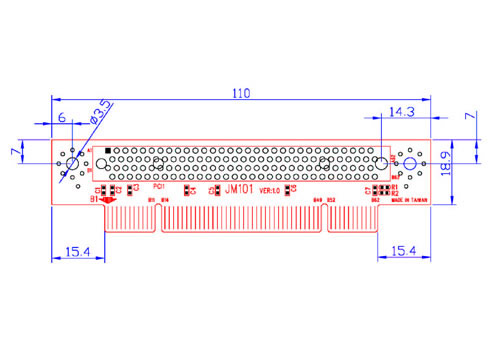

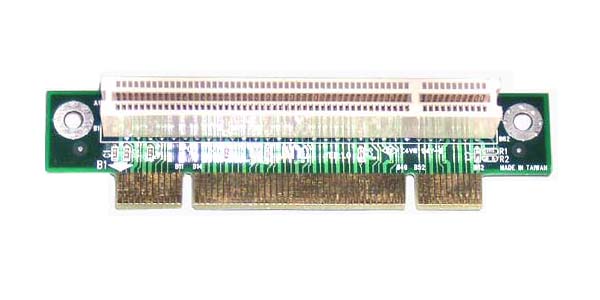

R1 - 1x32 bit 5V PCI , Dimension Drawing

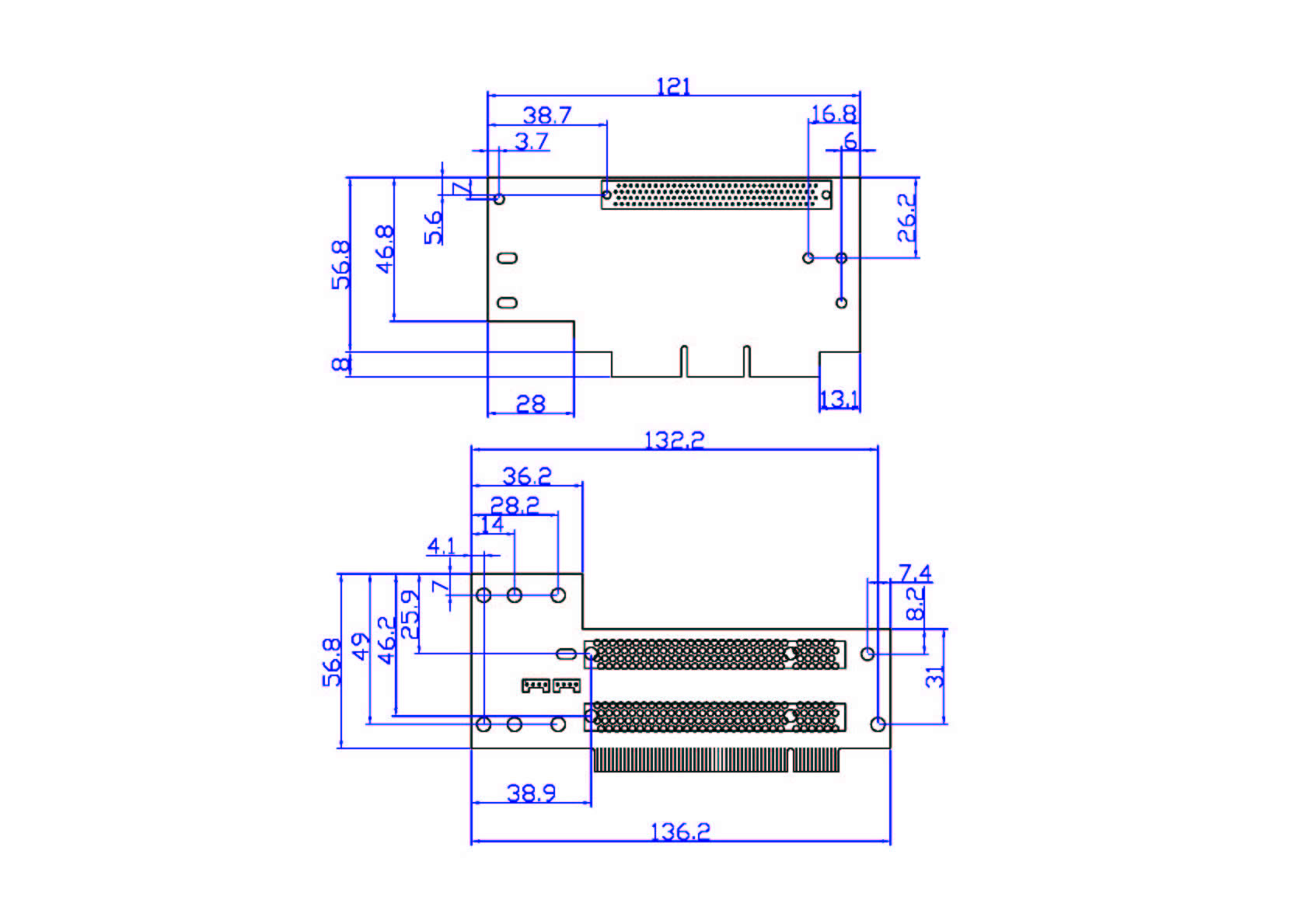

R10 - (2x32 bit PCI for 2U / 1.5U) 5V , Dimension Drawing

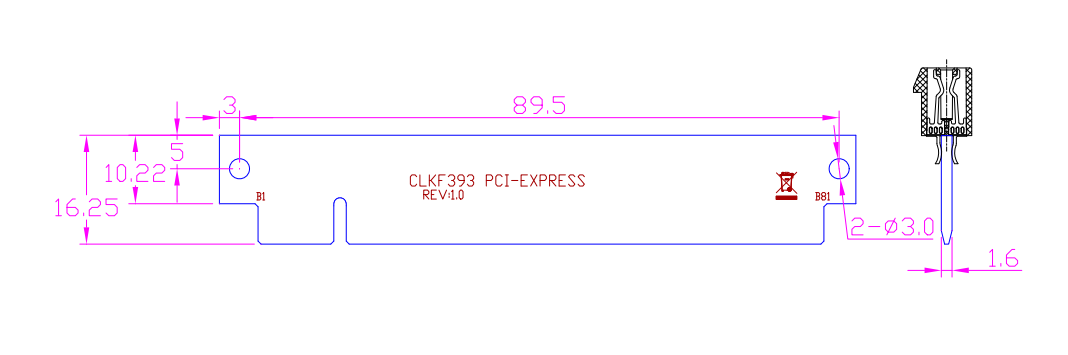

R16 - CLKF 393, order code:617, PCIe x16 Lanes , Dimension Drawing



R17 - CLKF 664A, order code:640, PCIe x16 Lanes , Dimension Drawing

R18 - CLKF 340, order code:672, 32 bit / 5V PCI  extension card



R19, order code: 865, PCIe  x 16 PEG riser card, w/ flexible cable ~7 cm

R19
