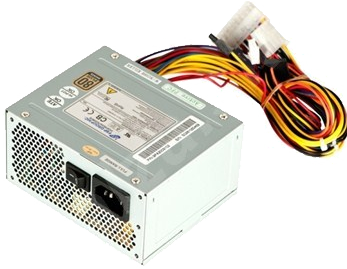

FSP200-50GSV

Safety
N CE C-ARR TUV CB UL CSA CCC FCC
Feature:


• High efficiency
• Low ripple & noise
• Resettable power shut down
• Internal 6 cm fan
• 100% burn-in test
• MTBF: 100K hours at 25°C

Dimension : 130 x 125 x 63.5 mm

Specifications:
Input Specifications
• Voltage:
100~240VAC
• Frequency: 47Hz - 63Hz.

Protection Specifications
• Over-voltage protection:
+3.3V, +5V, +12V
• Over-current protection: None
• Short circuit protection

General Specifications
• Efficiency:
85% mini.at typical load

Environmental Specifications
• Operating conditions:
ambient temperature 0°C~+50°C
• Storage and
shipping conditions:
ambient temperature -20°C~+80°C
• Dielectric withstand: input / output 1800 VAC for 1 second,
input to frame ground 1800VAC for 1 second

Output:
Model Watts Output
+3.3V +5V +12V -12V +5Vsb
FSP200-50GNV 200W 14A 16A 15A 0.3A 2A

*Refer to spec sheet for output limitation.

*Detailed specifications and drawings provided upon request
